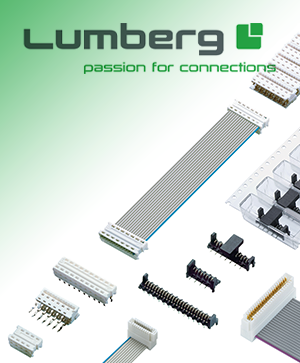

When precision, reliability and flexibility are required, there is only one answer: MICA and MICS from Lumberg Connect. These two Micromodul™ connectors set standards in the world of connection technology.

MICA – compact and powerful

The MICA series offers Micromodul™ connectors for ribbon cables with a pitch of 1.27 mm. Their highlights:

• Wide temperature range: Works reliably between -40 °C and +120 °C.
• Robust materials: Contact carriers made of PBT GF (UL94 V-0) and tin-plated contact surfaces offer high resistance and durability. A gold-plated version is also available for the most demanding requirements.
• Outstanding electrical properties: With a rated current of 1.2 A and a rated voltage of up to 250 V,
  MICA is suitable for a wide range of applications.
• Flexibility in flat cable connection: Supports conductor cross-sections from AWG 28 to AWG 26
  (0.09-0.14 mm²).

The sophisticated design ensures simple installation and outstanding contact quality,
which is impressive in demanding applications.


MICS – the perfect complement

As a tab header connector, the MICS series offers the ideal counterpart solution to the MICA connectors. Your advantages:

• Extended temperature range: Use from -40 °C to +140 °C – perfect for extreme environments.
• Superior stability: PA GF contact carriers and tin-plated contacts guarantee the highest connection quality.
  A gold-plated version is also available for the highest requirements.
• Optimum electrical specifications: An insulation resistance of >1 GΩ and a rated current of 1.2 A ensure maximum safety and performance.

With its retaining hooks and double-row solder contacts, MICS offers a secure and permanent connection on the PCB.
The MICS range includes upright and angled tab headers for both, THT and SMT solder processes.
 

Warum Micromodul™?
The combination of these two Micromodul™ types ensures a perfect connection in every respect: whether in household appliances, in the automobile, in control technology or in device construction – they impress with their high reliability, durable materials and sophisticated designs.
With different numbers of poles, from 4–26, and versions, they offer the flexibility your project needs.
Ideal for space-saving wire-to-board connections with ribbon cables as plug-in and solder-in connectors using insulation displacement technology, the headers THT and SMT soldering. For signal and low load currents up to 1.2 A in 1.27 mm pitch.
